面向园区型微电网的一体化控制系统

刘志文, 孙浩, 张磊, 王海华, 徐飞

刘志文, 孙浩, 张磊, 王海华, 徐飞. 面向园区型微电网的一体化控制系统[J]. 南方能源建设, 2014, 1(1): 25-29. DOI: 10.16516/j.gedi.issn2095-8676.2014.01.004
引用本文: 刘志文, 孙浩, 张磊, 王海华, 徐飞. 面向园区型微电网的一体化控制系统[J]. 南方能源建设, 2014, 1(1): 25-29. DOI: 10.16516/j.gedi.issn2095-8676.2014.01.004
Zhiwen LIU, Hao SUN, Lei ZHANG, Haihua WANG, Fei XU. An Integrated Control System for Zone Type Micro-grid[J]. SOUTHERN ENERGY CONSTRUCTION, 2014, 1(1): 25-29. DOI: 10.16516/j.gedi.issn2095-8676.2014.01.004
Citation: Zhiwen LIU, Hao SUN, Lei ZHANG, Haihua WANG, Fei XU. An Integrated Control System for Zone Type Micro-grid[J]. SOUTHERN ENERGY CONSTRUCTION, 2014, 1(1): 25-29. DOI: 10.16516/j.gedi.issn2095-8676.2014.01.004
刘志文, 孙浩, 张磊, 王海华, 徐飞. 面向园区型微电网的一体化控制系统[J]. 南方能源建设, 2014, 1(1): 25-29. CSTR: 32391.14.j.gedi.issn2095-8676.2014.01.004
引用本文: 刘志文, 孙浩, 张磊, 王海华, 徐飞. 面向园区型微电网的一体化控制系统[J]. 南方能源建设, 2014, 1(1): 25-29. CSTR: 32391.14.j.gedi.issn2095-8676.2014.01.004
Zhiwen LIU, Hao SUN, Lei ZHANG, Haihua WANG, Fei XU. An Integrated Control System for Zone Type Micro-grid[J]. SOUTHERN ENERGY CONSTRUCTION, 2014, 1(1): 25-29. CSTR: 32391.14.j.gedi.issn2095-8676.2014.01.004
Citation: Zhiwen LIU, Hao SUN, Lei ZHANG, Haihua WANG, Fei XU. An Integrated Control System for Zone Type Micro-grid[J]. SOUTHERN ENERGY CONSTRUCTION, 2014, 1(1): 25-29. CSTR: 32391.14.j.gedi.issn2095-8676.2014.01.004

面向园区型微电网的一体化控制系统

详细信息
    作者简介:

    刘志文(1980),男,湖南益阳人,高级工程师,博士,主要从事微电网运行与控制技术研究(e-mail)lzw32347@126.com。

  • 中图分类号: TM727.2

An Integrated Control System for Zone Type Micro-gridEn

  • 摘要: 在充分考虑园区型微电网安全稳定运行的基础上,从园区型微电网建设和运营集约化角度出发,提出一种适用于园区型微电网的一体化控制系统,并对所提一体化控制系统的系统架构,系统基本功能,所采用的三层控制结构,系统应配备关键装置和主站系统典型配置方案进行详细的分析和说明。研究表明:该一体化控制系统适应园区型微电网发展的需要,对微电网技术的推广和应用具有重要意义。
    Abstract: From intensive angle of zone type micro-grid construction and operation, this paper presents an integrated control system for zone type micro-grid taking into full account the safe and stable operation of zone type micro-grid, then detailedly analyzes and explains the system architecture, system basic functions, three-layer control structure, system key devices and typical configuration scheme of the integrated control system . The results show that the proposed integrated control system could meet the needs of zone type micro-grid development, and has great significance for promotion and application of micro-grid technology.

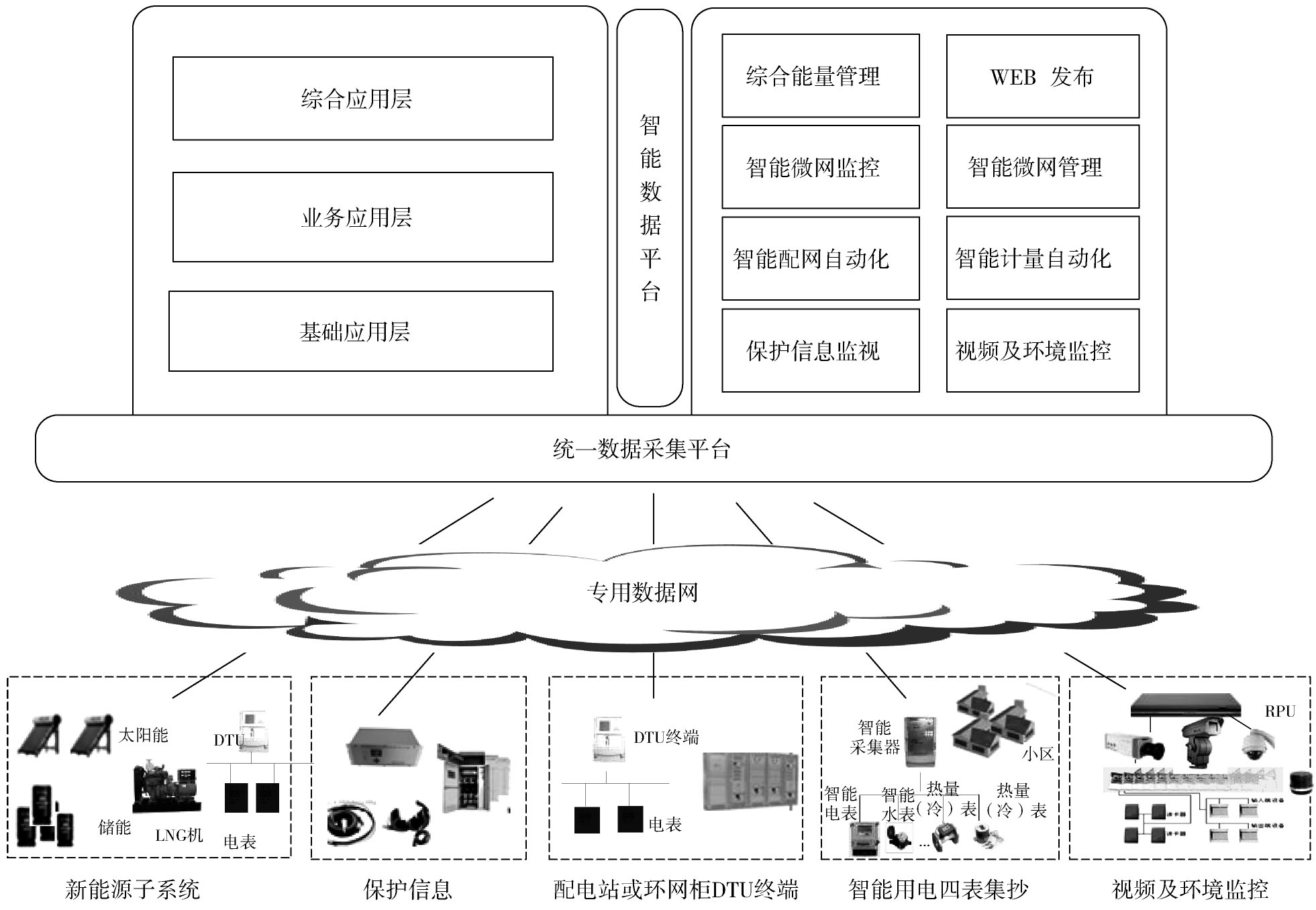

  • 图  1   微电网一体化控制系统总体架构

    Figure  1.   General Architecture of Micro-Grid Integrated Control System

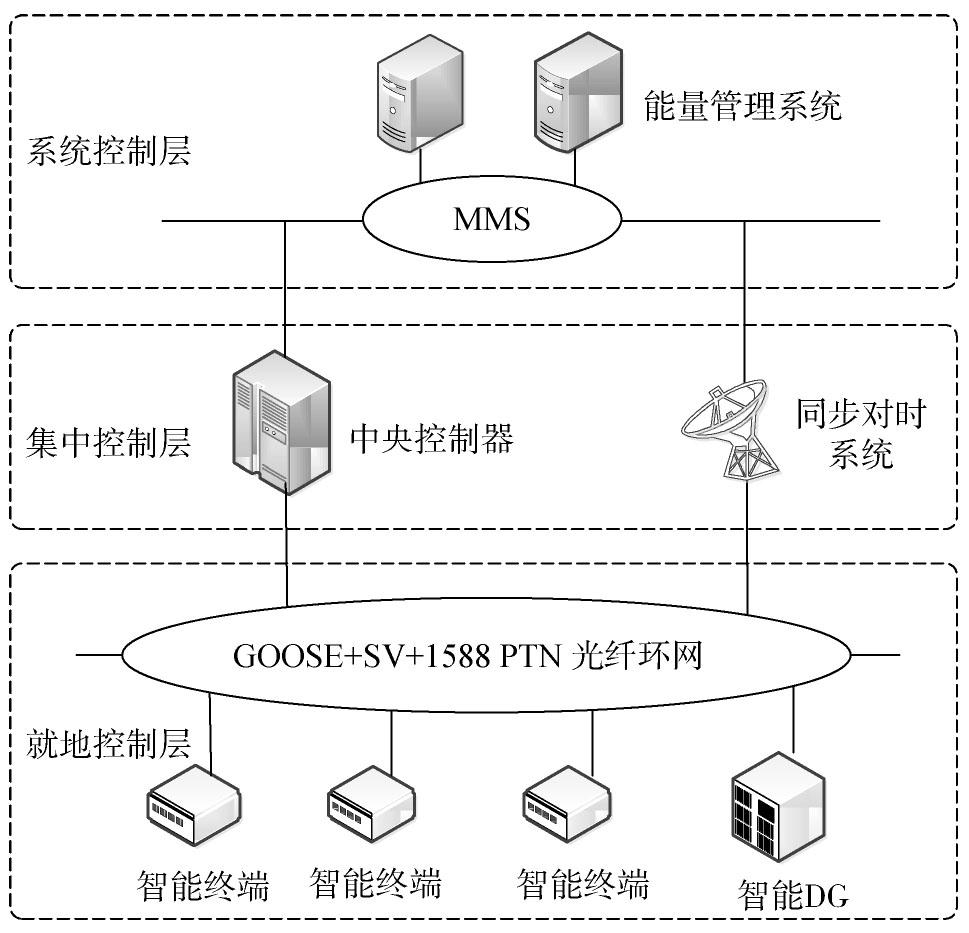

    图  2   系统控制架构示意图

    Figure  2.   Schematic Diagram of System Control Architecture

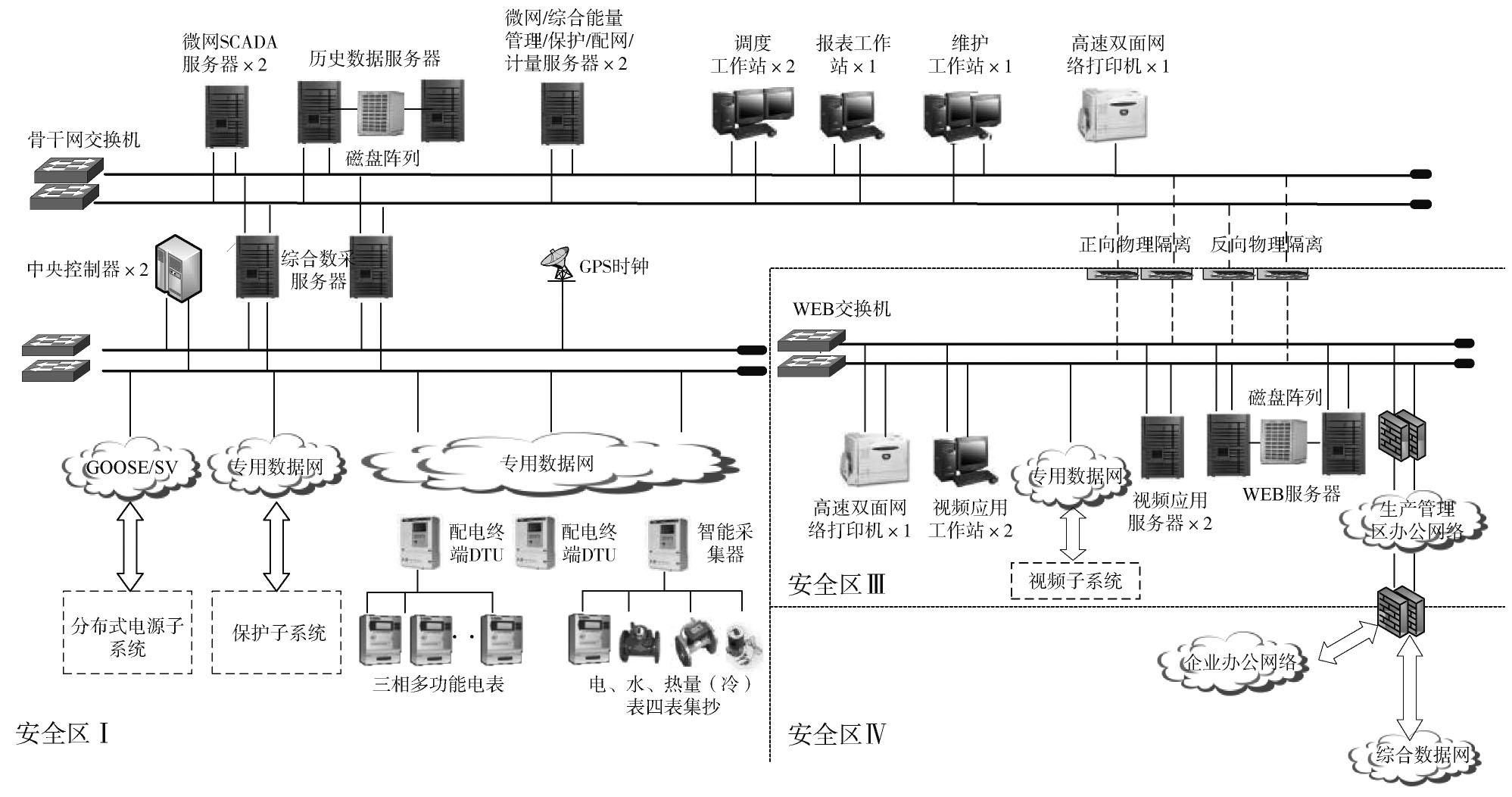

    图  3   主站系统配置方案示意图

    Figure  3.   Typical Configuration Scheme for Integrated Control System
