底板式基盘的设计和场地建造要点分析

详细信息
    作者简介:

    孙金丽(1981),女,江苏南通人,硕士,主要从事海上特种设备设计、制造和测试工作(e-mail)sunjl@mail.cooec.com.cn。

  • 中图分类号: TE54

Analysis of the Design and Fabrication of Baseplate Template in Subsea Production SystemEn

  • 摘要: 以国内某个自主建造、测试、安装的深水油气田水下生产系统的底板式基盘为例,分析了底板式基盘的设计基本要求和场地建造要点,重点阐述了基盘场地的建造流程,总结了基盘防沉板、基盘保护架、基盘滑轨架建造过程中的几个关键点和难点,为后续深水水下生产系统管汇和基盘等结构物建造提供经验积累和技术支持。
    Abstract: A general baseplate template of subsea production system (SPS) in oil and gas fields which is produced, tested and installed in China is studied. Firstly, the key points of design requirements and field fabrication for SPS baseplate template are analyzed. Then the fabrication process of SPS baseplate template is discussed in detail. Finally, the mud mat, protection frame, sliding rail of template in fabrication process are analyzed, which providing experience and technical support for fabrication of similar subsea production manifold and template.

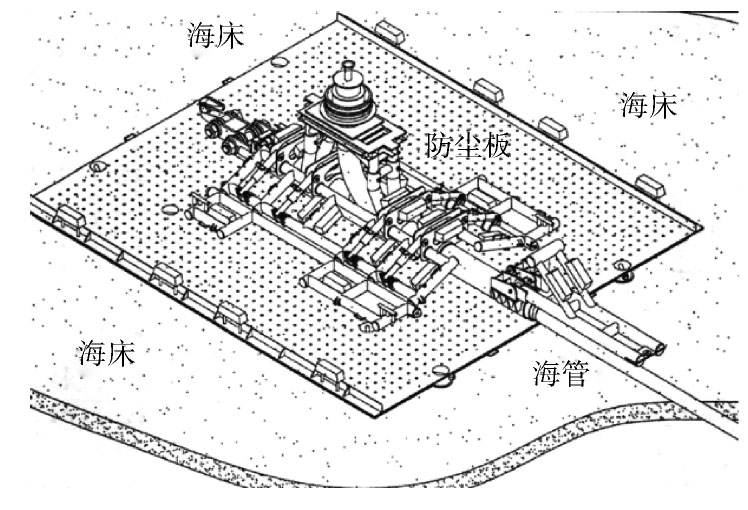

  • 图  1   海管终端与基盘联合体

    Figure  1.   PLET and Template

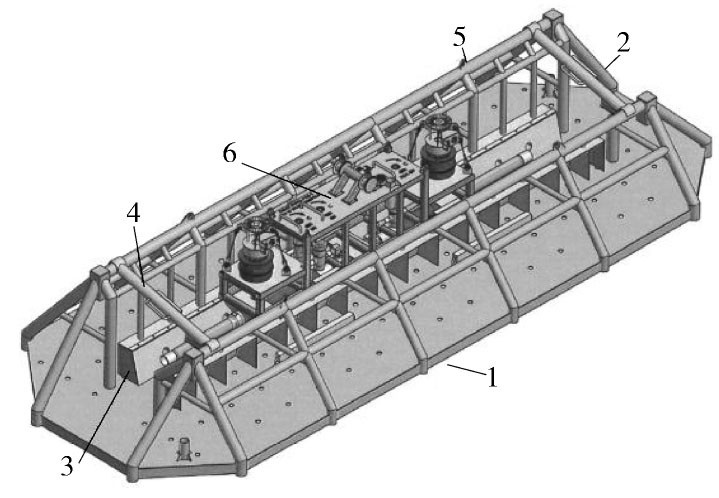

    图  2   水下在线管汇设施下独立式基盘

    Figure  2.   Independent Template of ILM

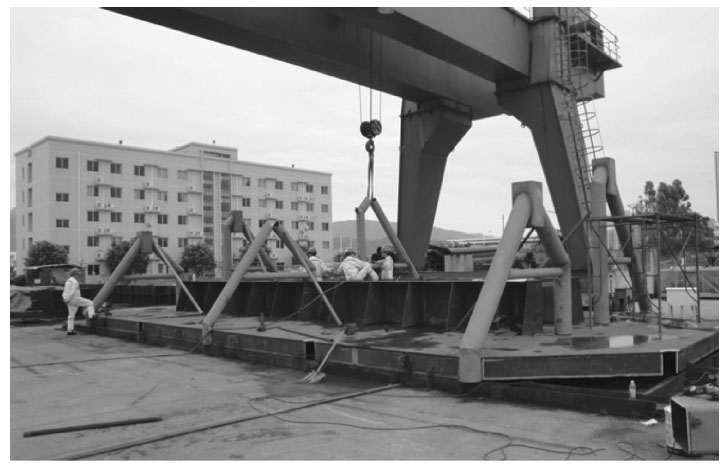

    图  3   滑轨架焊接完毕

    Figure  3.   Finish Welding of the Slid Way

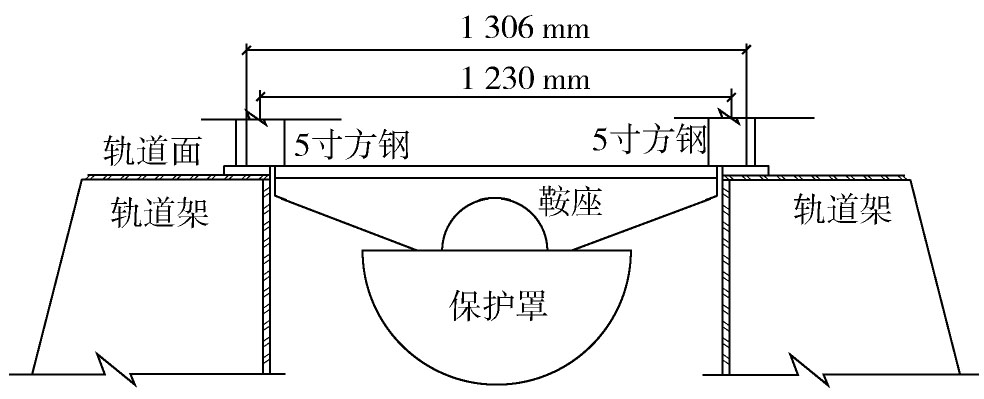

    图  4   基盘滑轨道拟合尺寸
